Process of Plastic Injection Mould Making in China

2024-09-25
233 Views


In the manufacturing process, you often need to create a plastic mould of your product, which is an important step. Since the majority of the world's products are manufactured in China, Chinese engineers have developed expertise in mould design.

Almost all kinds of products, whether it is consumer electronics products, automobile components, or any kind of domestic items used in the house, need moulds. In the process of mould making in China, it involves every possible step such as:

- Mould design

- Selection of materials

- Production of mould

- Quality control

- Marketing.

In this post, we will try to touch upon all these steps briefly.

Plastic injection moulding in China

Mould making in China has become very efficient and cost-effective over the years, thanks to the expertise developed by Chinese engineers in developing techniques for creating plastic injection moulds. You may generate high-quality things within your budget by using China's capacity to produce goods of exceptional quality at a fraction of the cost.

Plastic injection moulding is a procedure used in nearly all large-scale manufacturing of items. In the plastic injection process, initially, molten plastic is forced into a certain cavity at a higher temperature. After that, it is allowed to cool down at normal temperature, and molten plastic hardens into a solid.

Depending upon the desired shape and design of the product, the desired mould is created.

China's advantages with plastic injection moulding

Toys, one-piece seats, storage containers, plastic parts, and the majority of plastic products on the market today may all be made with plastic injection moulding. This method is used when you need to mould intricately formed products of any size and produce a product in large quantities with certain specs.

The ability to produce metal and non-metal inserts is another benefit of plastic injection moulding. It is feasible to produce extremely accurate and precise thin-walled items that are unreplaceable by other moulding techniques.

The injection moulding cycle is a brief procedure that boasts high production efficiency and complete automation. Stable plastic is the end result of the injection moulding process.

Unlike traditional manufacturing procedures that remove a significant portion of the original plastic during production, the plastic injection moulding machine makes the most use of raw materials. The injection moulding plastic method produces very little waste.

It is incredibly economical to manufacture parts and other plastic goods in China using the plastic injection moulding technique. The highly advanced equipment can manufacture a lot of the goods without sacrificing its quality.

Because the procedure is very reproducible and the moulds are reusable, the same product can be made repeatedly without compromising its quality. You may thus ensure that your customers consistently receive the same premium parts.

5 types of injection moulding technology

1. Thin-wall moulding - This method of mould making in China is used to make plastic components with extremely thin walls, such as test instruments, tubes, and circuits.

2. Gas-assisted injection moulding - Injection-moulded items made of thick plastic may distort as they cool. By injecting gas into an injection mould filled with polymer, gas-assisted injection moulding technology preserves the smoothness and polished appearance of the plastic outside the mould. The interior, however, continues to be hollow and porous.

3. Metal injection moulding - Metal injection moulding is accomplished with this technology. In the cell phone industry, it is frequently used to protect devices from radio and microwave waves.

4. Liquid silicone injection moulding - When a part needs to be made to endure extremely high temperatures or chemical agents, this method is applied. Medical equipment and certain auto parts are two examples. They employ silicone, which is liquid.

5. 3D printing - In order to prototype an injection-moulded object, 3D printing technology is essential.

Overview of plastic injection mould making

Let us try to understand the process of plastic injection mould manufacturing. The entire procedure is perfect for high-volume manufacturing runs since it is efficient and permits complicated geometries.

1. Designing the mould

To start with, the designers of the mould will first create a plastic injection mould.

a. Product design

Design engineers work with customers to comprehend their needs for products. This stage frequently entails:

- Conceptualization: Outlining the product vision through preliminary drawings and descriptions.

- 3D Modelling: These days, software is available to create a 3-dimensional model with the help of CAD (Computer-Aided Design). This design is first created by an engineer on his computer and evaluates its suitability by using the software.

- Simulation: The flow of molten plastic can be analysed using software simulations to spot any problems like air pockets or weak spots.

b. Mould design

The mould itself needs to be designed after the product design is complete. This comprises:

- Mould type selection: Depending on production requirements, choose between single- and multi-cavity moulds.

- Cooling and heating systems: Cycle time and product quality are impacted by the design of cooling channels that guarantee uniform cooling throughout the mould.

- Ejection systems: Putting in place methods to safely remove the completed product from the mould.

2. Material selection for moulds

The material selected for the mould must last long and be efficient as well. Hence, the selection of the right material is crucial.

- Steel versus aluminium:  Most engineers suggest to their customers that while mould making in China, they use steel materials for the mould. However, steel can be a little expensive material, and hence, quite a few engineers suggest going for aluminium, which is not only a cheaper material but also easier to machine.

Particularly, for low-volume production, many engineers suggest going for aluminium material and steel is preferred for high-volume production.

- Coating treatments: In order to make the surface of the mould smooth, chrome plating is done on the mould.

3. Manufacturing the mould

Mould making is an intricating process, and several sophisticated manufacturing techniques are involved

a. CNC machining: CNC machines are frequently used by designers to make moulds in China. Using such a CNC machine makes it very convenient to create a proper mould shape accurately. All its complex geometry can be created by using CNC machines.

b. Electrical Discharge Machining: EDM allows for extremely precise etching of intricate designs by using electrical sparks to degrade material.

c. Injection moulding simulation: Before the mould is finalized, a simulation of the injection moulding process may be conducted to predict performance and identify potential adjustments needed in the design. This helps in preventing costly errors during production.

4. Testing and quality control

The mould is put through a thorough testing process once it is made to make sure it satisfies all standards. This stage entails:

- Functional testing: Test samples are created using the mould, and each part's precision and quality are evaluated.

- Dimensional inspection: Various dimensions of the mould, which is very critical, are measured with the help of high-accuracy instruments.

- Durability testing: Here, the length of time the mould will last is evaluated.

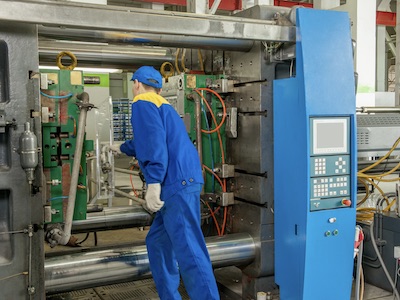

5. Injection moulding process

The mould is prepared for injection moulding after it passes the preliminary testing.

a. Material preparation: Plastic pellets are supplied to the injection moulding machine, where heat is generated so that plastic melts.

b. Injection phase: Thereafter, the molten plastic material is forced into the cavity of the mould so that it is fully filled and fully occupies the cavity.

c. Cooling phase: After some time, the cavity is allowed to cool off so that plastic gets into solid form. Depending upon the type of plastic material selected will determine the cooling time.

d. Ejection phase: After cooling, the mould opens, allowing mechanical ejector pins to remove the completed object.

6. Market dynamics and trends

The plastic injection mould making industry in China is influenced by various factors including:

a. Rising demand: Goods for consumers, vehicle parts, and electronics have become more and more in demand, which has raised the demand for premium plastic parts.

b. Technological advancements: These days, many sophisticated tools are available to increase the speed of the mould-making process so that mould can be delivered to customers quickly.

c. Environmental concerns: As environmental protection has become an important consideration these days, biodegradable plastic material is mostly used.

7. Challenges in the industry

Notwithstanding its advantages, China's plastic injection mould manufacturing sector suffers a number of difficulties:

- Quality control: Strict quality assurance procedures are necessary since it might be challenging to maintain consistent quality during high-volume production.

- Skill gaps: A number of new tools and equipment are coming into the market. Hence, engineers and technicians need to upgrade their skills so that they can take benefit of new technology.

- Competition: Companies making mould need to think of new ideas and remain competitive in the market.

A few things to consider while using plastic injection moulding

The following considerations should be made when deciding whether to make a part or product using the plastic injection moulding process:

1. Financial considerations

- Entry cost: Although plastic injection moulding is an economical procedure, keep in mind that it necessitates a substantial upfront outlay.

- Production quantity: Find the production volume at which plastic injection moulding offers the best financial return. Calculate how many items must be created in order for your investment to break even.

Consider every expense, including those related to developing, testing, producing, assembling, promoting, distributing, and projecting the price of sales. Make sure your margin is healthy.

2. Design considerations

- Part design: Make sure the injection moulding method is considered in your final design. Simplifying the product's design, geometry, and the number of parts will increase the likelihood that it will be of excellent quality.

- Tool design: Make sure the mould tool is made in a way that prevents product defects.

3. Production considerations

- Cycle time: Reduce the number of steps and cycle time as much as you can. A well-thought-out instrument combined with superior hot runner technology can significantly cut down on time.

When creating thousands of parts, even minor adjustments that do not appear important at first might cut down on cycle time and save you a significant amount of money.

- Assembly:  Reduce assembly time by carefully designing.

Selecting the right Chinese injection moulding company

Are you looking for a suitable mould making company in China? Then, here are a few important things to consider.

- Think about what you want the organization to assist you with, for example. This might be accuracy or any other essential component that will enable you to enhance your production processes.

- Think about being on time if you want your product manufacturing to go well.

Remember that a reliable China sourcing agency ought to have experience dealing with a wide range of international clients. This can guarantee that your plastic moulds and parts can be shipped to any place in the world with ease.

Mistakes to avoid while making the design of injection moulding

1. In plastic injection moulding, neglecting draft angles can complicate part removal, as they should align with the mould's opening and closing to facilitate easy ejection.

2. Sharp corners increase stress concentration, especially in critical areas like bosses and ribs, potentially leading to part failure.

3. Consistent wall thickness is essential. Ideally, a minimum of 2mm to 4mm ensures effective mould filling. Non-uniform walls cause uneven cooling, as thinner sections harden first, creating stress at the interface with thicker sections. This stress can result in warping or cracking during the cooling phase, ultimately compromising part integrity.

Conclusion

It is important to understand that mould-making involves various stages, which is a fairly complex process. It starts with material selection to manufacturing and is followed by a quality control process. Qualified staff and cutting-edge technologies enhance the sector. Nonetheless, it keeps changing in response to consumer needs, technical developments, and environmental factors.

The proficiency and potential of Chinese mould makers will be crucial in determining the direction of manufacturing in the future, given the continued dependence of international industries on plastic components. The plastic injection mould making in China is expected to have sustained growth and innovation, owing to breakthroughs in automation, material science, and sustainable practices.
